How to Hardwire a Dash Cam: A Complete DIY Guide

Let’s be honest, that dangling power cord snaking its way from your dash cam to the 12V socket is an eyesore. It screams “afterthought,” gets in the way, and occupies a power source you could be using for something else. But what if there was a cleaner, more professional, and infinitely more powerful way to set up your silent witness? That’s where learning How To Hardwire A Dash Cam comes in. It might sound intimidating, but it’s one of the most rewarding and straightforward DIY projects you can do for your vehicle, unlocking your camera’s full potential.

Think of it as the difference between a temporary setup and a permanent, integrated security system for your car. It’s the secret to a truly “set it and forget it” experience, giving you total peace of mind every time you turn the key—and even long after you’ve walked away.

Why You Should Hardwire Your Dash Cam

Before we grab any tools, let’s talk about the “why.” Is this process really worth the effort? Absolutely. The benefits go far beyond just aesthetics.

A Super Clean Installation: This is the most obvious perk. No more wires cluttering your dashboard or getting tangled around your gear stick. The cable is neatly tucked away behind your car’s trim, making the dash cam look like it was installed at the factory.
Frees Up Your 12V Socket: Your car’s cigarette lighter socket is prime real estate. Hardwiring your dash cam frees it up for charging your phone, running a GPS, or powering other essential gadgets on a long road trip.
Unlocks True Parking Mode: This is the game-changer. Most dash cams offer a “parking mode” feature that records incidents like bumps or hit-and-runs while your car is parked. This feature only works with a constant power supply, which you can only get by hardwiring directly to your car’s fuse box. Without it, your dash cam is blind the moment you turn off the engine.
Automated Operation: A hardwired dash cam turns on and off with your car’s ignition automatically. You never have to remember to plug it in or turn it on. It’s always ready, always recording.

Expert Insight: According to John Carter, an Automotive Technology Expert with 15 years of experience, “Parking mode is the single most valuable feature you gain from hardwiring. It transforms your dash cam from just a driving recorder into a 24/7 surveillance system for your vehicle. The evidence it can capture in a parking lot incident is often priceless.”

The Essential Toolkit: What You’ll Need

Getting the right gear together beforehand makes the whole process smooth as butter. You won’t need a full mechanic’s workshop, just a few key items.

Your Dash Cam: Of course!
A Hardwire Kit: This is non-negotiable. Don’t try to splice wires yourself. A dedicated hardwire kit is designed for this job. It typically has three wires:
- RED (ACC): The switched power source. It only gets power when the ignition is on.
- YELLOW (BATT+): The constant power source. It’s always live, even when the car is off. This is what powers parking mode.
- BLACK (GND): The ground wire.
Add-A-Circuit Fuse Taps: These little lifesavers let you “piggyback” off an existing fuse without cutting or splicing any factory wiring. Make sure you get the right size for your car’s fuses (ATO, Mini, Low-Profile Mini, or Micro2 are common).
A Circuit Tester or Multimeter: This is your most important diagnostic tool. It’s essential for correctly identifying constant and switched fuses.
Trim Removal Tool: A plastic pry tool is highly recommended to avoid scratching or breaking your car’s interior trim panels.
Extra Fuses: Get a few extra fuses that match the ones in your car and the rating on your fuse taps.
Pliers or a Crimping Tool: For securing the wire to the fuse tap.
Zip Ties: To keep your new wiring neat and tidy.

Thiếu hoặc sai id. Bảng có sẵn: [amz id="dashcam"]

Your Step-by-Step Guide on How to Hardwire a Dash Cam

Ready to get started? Take a deep breath. We’ll break this down into simple, manageable steps. The whole process usually takes 30 to 60 minutes.

Step 1: Safety First and Planning

Before you touch anything, park your car in a well-lit area and turn off the engine. For ultimate safety, you can disconnect the negative terminal of your car’s battery, but for this low-voltage job, simply ensuring the car is off is generally sufficient.

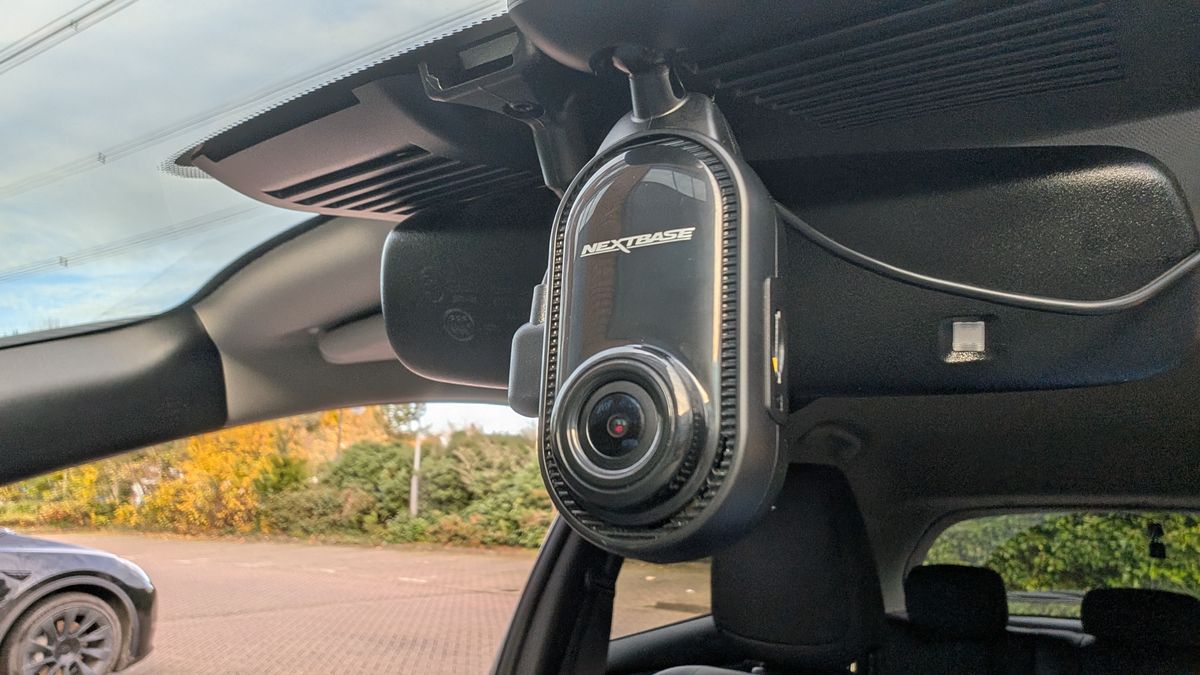

Next, decide where you’ll mount your dash cam. The best spot is usually behind the rearview mirror, where it doesn’t obstruct your view but still has a clear picture of the road.

Step 2: Locate Your Car’s Fuse Box

Your car’s fuse box is your target. Its location varies by vehicle, but common spots are:

Behind a panel on the driver’s side, near the steering wheel.
Inside or behind the glove compartment.
In the engine bay (try to use an interior fuse box if possible).

Check your vehicle’s owner’s manual if you’re having trouble finding it. It will have a diagram showing what each fuse does.

Step 3: Identify the Right Fuses

This is the most critical step. You need to find two specific types of fuses:

A Constant Power Fuse: This fuse has power even when the car is turned off. Things like your hazard lights, dome lights, or power seats are good candidates.
A Switched Power (ACC) Fuse: This fuse only gets power when you turn the key to the “Accessory” or “On” position. The radio, 12V cigarette lighter, or sunroof are often on switched circuits.

How to find them:

Connect the clip of your circuit tester to a piece of unpainted metal on the car’s chassis to ground it.
With the car off, touch the probe of the tester to the small metal contacts on top of each fuse. When the tester lights up, you’ve found a constant fuse. Note which one it is.
Now, turn the car’s ignition to the “ACC” or “On” position (without starting the engine).
Start testing other fuses. Find one that only lights up when the ignition is on. That’s your switched fuse.

Important: Avoid using fuses connected to critical safety systems like airbags, stability control, or the engine control unit (ECU).

Step 4: Find a Good Grounding Point

The black ground wire from your hardwire kit needs to be attached to the car’s metal chassis. Look for a metal bolt or screw located near the fuse box that is directly connected to the car’s frame. Loosen it slightly, slide the U-shaped connector of the ground wire underneath, and tighten it back down securely.

Step 5: Route the Power Cable

Start at your dash cam. Gently tuck the USB end of the hardwire kit’s cable into the headliner above your windshield. Use your plastic trim tool to make space if needed.

Run the cable across the top of the windshield over to the A-pillar (the pillar between the windshield and the driver’s or passenger’s side door).
Carefully pry open the A-pillar trim and run the cable down alongside the existing factory wiring. Be mindful of any airbags in this area and ensure your cable runs behind them, not in front.
Continue routing the cable down to the area of the fuse box.

Step 6: Connect the Hardwire Kit with Fuse Taps

Take your Add-A-Circuit fuse tap for the switched (ACC) fuse. Use pliers to crimp the RED wire from your hardwire kit to the connector on the fuse tap.
Remove the original switched fuse you identified in Step 3. Place it into the lower slot of the fuse tap.
Place a new fuse (of the same or a slightly lower amperage recommended by your hardwire kit) into the upper slot of the fuse tap. This new fuse is for your dash cam.
Plug the fuse tap into the empty slot where you removed the original switched fuse.
Repeat this entire process for the constant fuse, connecting the YELLOW wire from your kit.

Step 7: Tidy Up and Test

Before you put all the panels back on, it’s time to test your work.

Plug the hardwire kit’s cable into your dash cam.
Turn the ignition to “ACC.” The dash cam should power on and start recording.
Turn the ignition off. The dash cam should either power off or enter parking mode, depending on its settings.
If everything works, congratulations! Use zip ties to bundle any excess wiring and tuck it away neatly. Replace all the trim panels and the fuse box cover.

You’ve just learned how to hardwire a dash cam like a pro.

Frequently Asked Questions (FAQ)

Q1: Is hardwiring a dash cam difficult for a beginner?
A: Not at all! While it seems complex, it’s a very logical process. If you can follow instructions and use a simple circuit tester, you can do this. The key is to take your time and double-check which fuses you are using.

Q2: Will hardwiring a dash cam void my car’s warranty?
A: When done correctly using high-quality fuse taps, it should not void your vehicle’s warranty. You are not cutting or modifying any of the car’s original wiring. However, if you are concerned, it’s always best to check with your dealership.

Q3: Can a hardwired dash cam drain my car’s battery?
A: This is a common concern, but modern hardwire kits are designed to prevent this. They have a built-in low-voltage cutoff feature. This means the kit will automatically stop drawing power if your car’s battery voltage drops below a certain level (e.g., 11.8V or 12.0V), ensuring you always have enough power to start your engine.

Q4: What’s the difference between the red and yellow wires in a hardwire kit?
A: The red wire is for the ACC (Accessory) power, which is only active when your car is on. This tells the dash cam to start normal recording. The yellow wire is for the constant battery power, which is always on. This is what allows the dash cam to function in parking mode when the car is off.

Q5: How much does it cost to have a professional hardwire a dash cam?
A: Professional installation costs can vary depending on your location and the complexity of your vehicle, but you can typically expect to pay between $50 and $150. However, with a good hardwire kit and this guide, you can save that money and gain the satisfaction of a job well done.

Your Journey to a Safer Drive Starts Here

Taking the time to how to hardwire a dash cam does more than just clean up your dashboard—it elevates your vehicle’s security and your own peace of mind. You’ve invested in an electronic witness to protect you on the road; hardwiring ensures that witness is always on duty, always reliable, and never in your way. Now, you can drive with the confidence that every moment, whether you’re in motion or parked at the grocery store, is being watched over.
