Having a dash cam is like having a silent, impartial witness with you on every drive. It’s your best defense in a hit-and-run, your proof in a fraudulent insurance claim, and sometimes, your ticket to capturing those unbelievable, once-in-a-lifetime moments on the road. But to unlock its full potential, especially the invaluable parking mode feature, that flimsy 12V cigarette lighter adapter just won’t cut it. That’s where a hardwire installation comes in. If you’re wondering How To Install A Dash Cam Fuse Tap, you’ve come to the right place. This guide will walk you through the process, turning a seemingly complex task into a straightforward weekend project that will give you a professional, clean, and reliable setup.
Why Hardwire? The Perks of Ditching the 12V Adapter
So, why go through the trouble of messing with your car’s fuse box? Is it really worth it? In a word: absolutely.
- A Clean, Professional Look: Let’s be honest, dangling wires across your dashboard look messy and can even be a distraction. Hardwiring allows you to tuck all the cables away behind the trim, making your installation look like it came straight from the factory.
- Frees Up Your 12V Socket: Need to charge your phone? Or power a GPS? By hardwiring your dash cam, you keep that precious 12V socket free for other essential gadgets.
- Unlocking Parking Mode: This is the real game-changer. Parking mode allows your dash cam to keep an eye on your vehicle even when the engine is off. Using its G-sensor, it can detect impacts—like someone bumping into your car in a parking lot—and automatically start recording. Without a constant power source from a hardwire kit, this feature is useless.
Gearing Up: What You’ll Need for the Job
Before you start pulling panels off, let’s get our tools and components in order. Having everything ready will make the process smooth and frustration-free.
The Essentials:

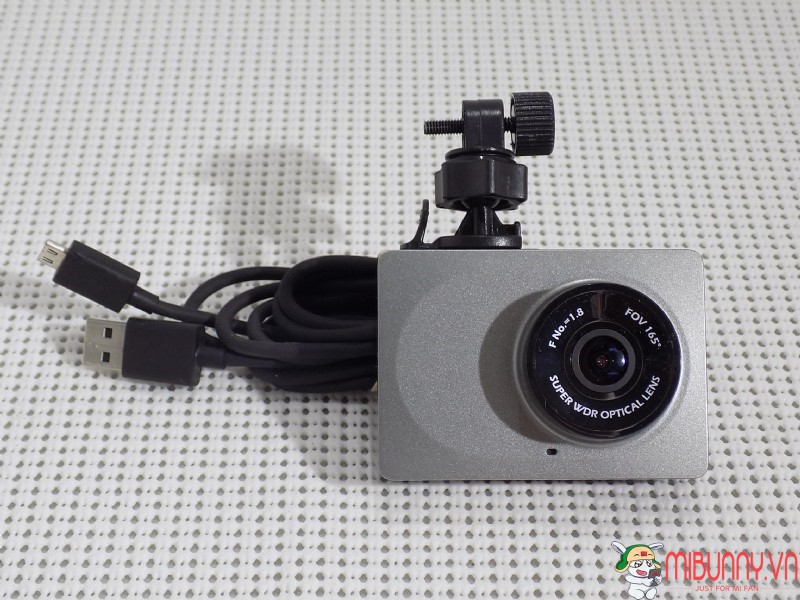

- Your Dash Cam
- A Hardwiring Kit (specifically designed for your dash cam model)
- A Fuse Tap Kit (often called “Add-A-Circuit”). Make sure you get the right size for your vehicle’s fuses (ATO, Mini, Low-Profile Mini, or Micro2 are common). Most kits come with a variety.
- A Circuit Tester or Multimeter (This is non-negotiable for finding the right fuses safely).
- A pair of Pliers or a Fuse Puller.
- A Trim Removal Tool (to avoid scratching your car’s interior).
- A Socket Wrench Set.
Important Note: A hardwiring kit is not just a cable; it includes a crucial voltage control box. This box monitors your car battery’s voltage and will shut off the dash cam if it drops too low, preventing a dead battery. Never try to wire a dash cam directly to the fuse box without one.
The Main Event: How to Install a Dash Cam Fuse Tap Step-by-Step
Alright, let’s roll up our sleeves and get this done. Take your time, read each step carefully, and double-check your connections.
Step 1: Locate Your Car’s Fuse Box
Your car’s fuse box is its electrical nerve center. It’s typically located in one of three places:
- In the driver’s side footwell, near the pedals.
- Behind the glove compartment.
- In the engine bay (we want to use an interior fuse box if possible).
Check your vehicle’s owner’s manual. It will show you the exact location and often includes a diagram of what each fuse does.
Step 2: Find the Perfect Fuses to Tap
This is the most critical step. We need to find two types of fuses:
- A “Switched” or “ACC” Fuse: This fuse only has power when you turn the ignition key to the “Accessory” or “On” position. This tells your dash cam to start its normal loop recording when you’re driving. Fuses for things like the radio or cigarette lighter are often good candidates.
- A “Constant” or “Hot” Fuse: This fuse has power all the time, even when the car is completely off. This is what powers parking mode. Fuses for things like hazard lights, interior dome lights, or power seats are usually constant.
How to find them using your circuit tester:
- Clip the ground lead of your circuit tester to a bare metal bolt or part of the car’s chassis.
- With the car’s ignition OFF, gently touch the probe of the tester to the small metal contacts on top of each fuse.
- When the tester lights up, you’ve found a Constant fuse. Make a note of it.
- Now, turn the car’s ignition to the “ACC” or “On” position (without starting the engine).
- Start testing the other fuses. Find one that only lights up when the ignition is on. That’s your Switched/ACC fuse.
Step 3: Prepare and Install the Fuse Taps
Your hardwiring kit has two main power wires (usually a red one and a yellow one) and a ground wire (black).
- Red Wire (ACC): This connects to your “Switched” fuse.
- Yellow Wire (Constant): This connects to your “Constant” fuse.
Here’s how to set up the fuse tap:
- Use pliers to gently remove the Switched fuse you identified.
- Your fuse tap has two slots. Place the original fuse you just removed into the bottom slot (the one farther from the wire).
- Place a new fuse (that came with your kit, usually of the same or lower amperage) into the top slot. This fuse protects the dash cam.
- Crimp the red (ACC) wire from your hardwire kit to the end of this fuse tap.
- Push the fuse tap firmly into the empty slot where you removed the original fuse.
- Repeat this entire process for the Constant fuse, connecting it to the yellow wire.
Step 4: Ground the Connection
A solid ground connection is essential for a stable circuit. The black wire from your hardwire kit needs to be attached to the car’s metal frame.
- Look for a metal bolt or screw near the fuse box that is attached directly to the chassis.
- Unscrew the bolt, slide the C-shaped connector of the black wire underneath it, and tighten the bolt securely. Do not use a painted bolt, as the paint can prevent a good connection.
Step 5: Route the Power Cable
Now for the fun part: hiding the wire.
- Decide on the best mounting position for your dash cam (usually behind the rearview mirror).
- Starting from the fuse box, gently run the USB end of the cable up the A-pillar (the pillar between your windshield and the driver’s side door).
- Use a trim removal tool to gently pry open the edge of the A-pillar cover and tuck the wire inside.
Safety First: Be mindful of side curtain airbags located in the A-pillar. Always run the wire behind the airbag, not across it, to ensure it can deploy properly in an accident.
- Continue tucking the wire across the headliner (the fabric ceiling of your car) until you reach your dash cam’s mounting spot. Leave just enough slack to plug it in.
Step 6: Power Up and Test
Plug the cable into your dash cam. Now, let’s test it:
- Normal Mode: Turn your car’s ignition on. The dash cam should power up and start its loop recording.
- Parking Mode: Turn your car’s ignition off. The dash cam should switch to parking mode (this may be indicated by a message on the screen or a change in the LED indicator).
If everything works as expected, congratulations! You’ve successfully learned how to install a dash cam fuse tap. Tidy up any loose wires and put all the panels and covers back in place.
Troubleshooting Common Issues
Run into a snag? Don’t worry. Here are a few common problems and their solutions.
- Dash Cam Won’t Power On: Double-check your ground connection. A poor ground is the most common culprit. Also, ensure both fuse taps are seated firmly and that all fuses (both original and new) are intact.
- Parking Mode Doesn’t Activate: You may have mixed up the ACC (red) and Constant (yellow) wires. The yellow wire must be connected to an always-on fuse for parking mode to work.
- The Car Won’t Start: This is highly unlikely, but if it happens, you may have tapped into a critical system fuse (like the ECU or fuel pump). Re-check your owner’s manual and choose less critical fuses like the radio or power outlet.
According to John Carter, an Automotive Technology Expert with 15 years of experience, “The biggest mistake beginners make is failing to use a circuit tester. Guessing which fuse to tap is a recipe for a headache. A $10 tester saves you hours of frustration and protects your car’s sensitive electronics.”
Frequently Asked Questions (FAQ)
Q1: Can installing a dash cam fuse tap void my car’s warranty?
A: In most cases, no. A fuse tap is a non-invasive device that doesn’t permanently alter your vehicle’s wiring. It can be easily removed without a trace. However, if an electrical issue arises and the dealership can prove it was caused by your installation, they may deny a warranty claim for that specific issue.
Q2: Will a hardwired dash cam drain my car battery?
A: Not if you use a proper hardwiring kit. These kits have a built-in voltmeter that automatically cuts power to the dash cam if your battery’s voltage drops below a preset level (e.g., 11.8V or 12V), ensuring you always have enough power to start your car.
Q3: What amperage fuse should I use for the dash cam in the fuse tap?
A: Your dash cam consumes very little power. A 2A to 5A fuse is typically more than sufficient. Your hardwire kit will usually come with the appropriately rated fuse. Never use a fuse with a higher amperage than what the kit recommends.
Q4: Can I just wrap the wire around the leg of a fuse instead of using a fuse tap?
A: Absolutely not. This is an unsafe and unreliable method that can lead to loose connections, short circuits, and even electrical fires. A fuse tap is the only correct and safe way to add a circuit to your fuse box.
Q5: How long does it take to install a dash cam with a fuse tap?
A: For a first-timer, plan for about 45 minutes to an hour. Take your time, especially when identifying the fuses. An experienced installer can often complete the job in 20-30 minutes.
Your Journey to Safer Driving
Congratulations on taking a huge step toward a safer, more secure driving experience. By learning how to install a dash cam fuse tap, you’ve not only achieved a cleaner, more professional setup but also unlocked the full 24/7 surveillance power of your device. Now you can drive—and park—with the ultimate peace of mind, knowing your silent witness is always on duty.
